Empennage

First part to be built was the stabilizer. I laid out the jig on the table using wooden blocks. The same method as I used in the building of the wing ribs and the fuselage

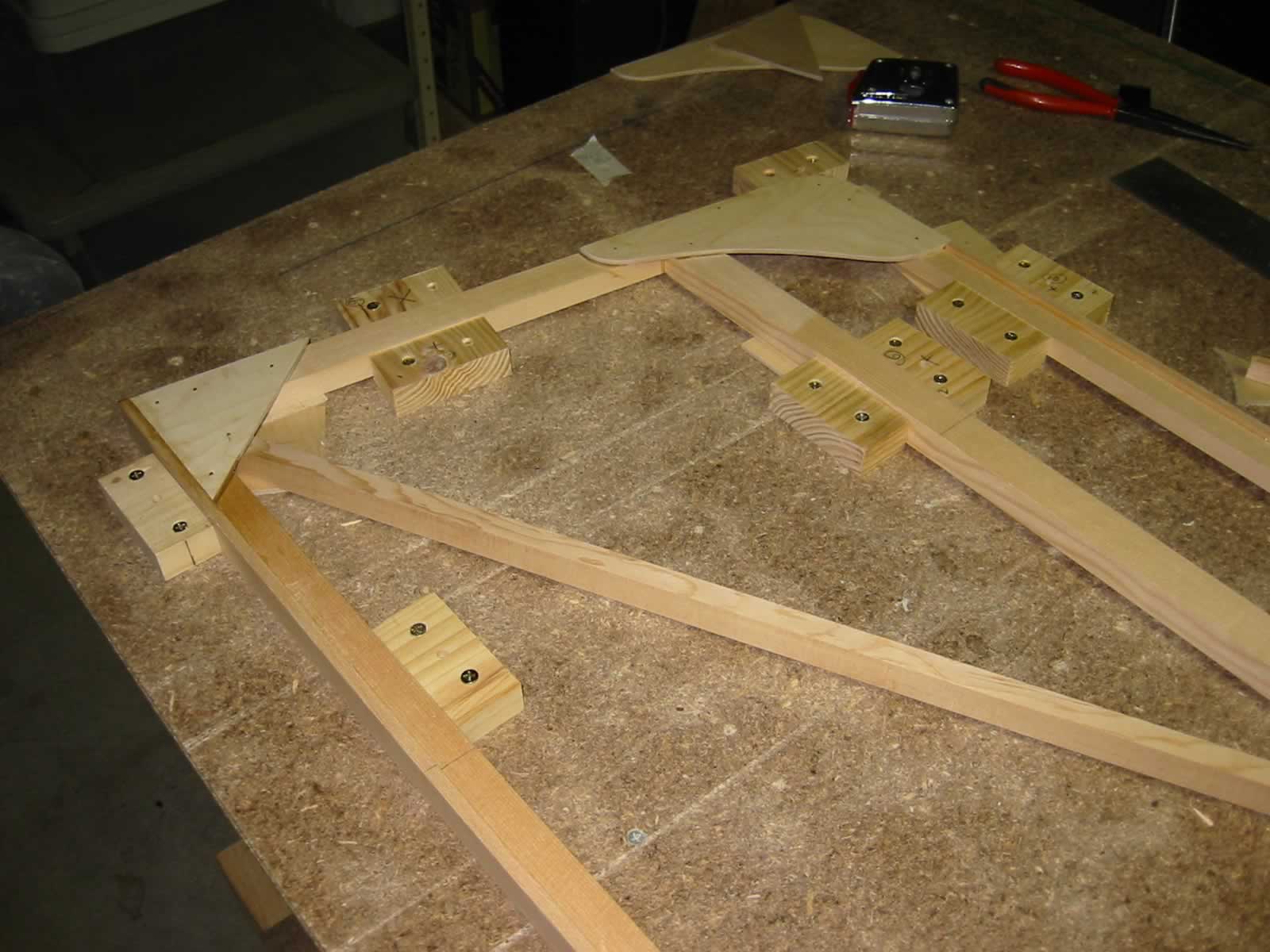

IMG_0257_JPGThe Main beam and the leading edge shown on the plans are routed. I chose to use two pieces of spruce and glue them together in a “T” section. They will be shaped on completion

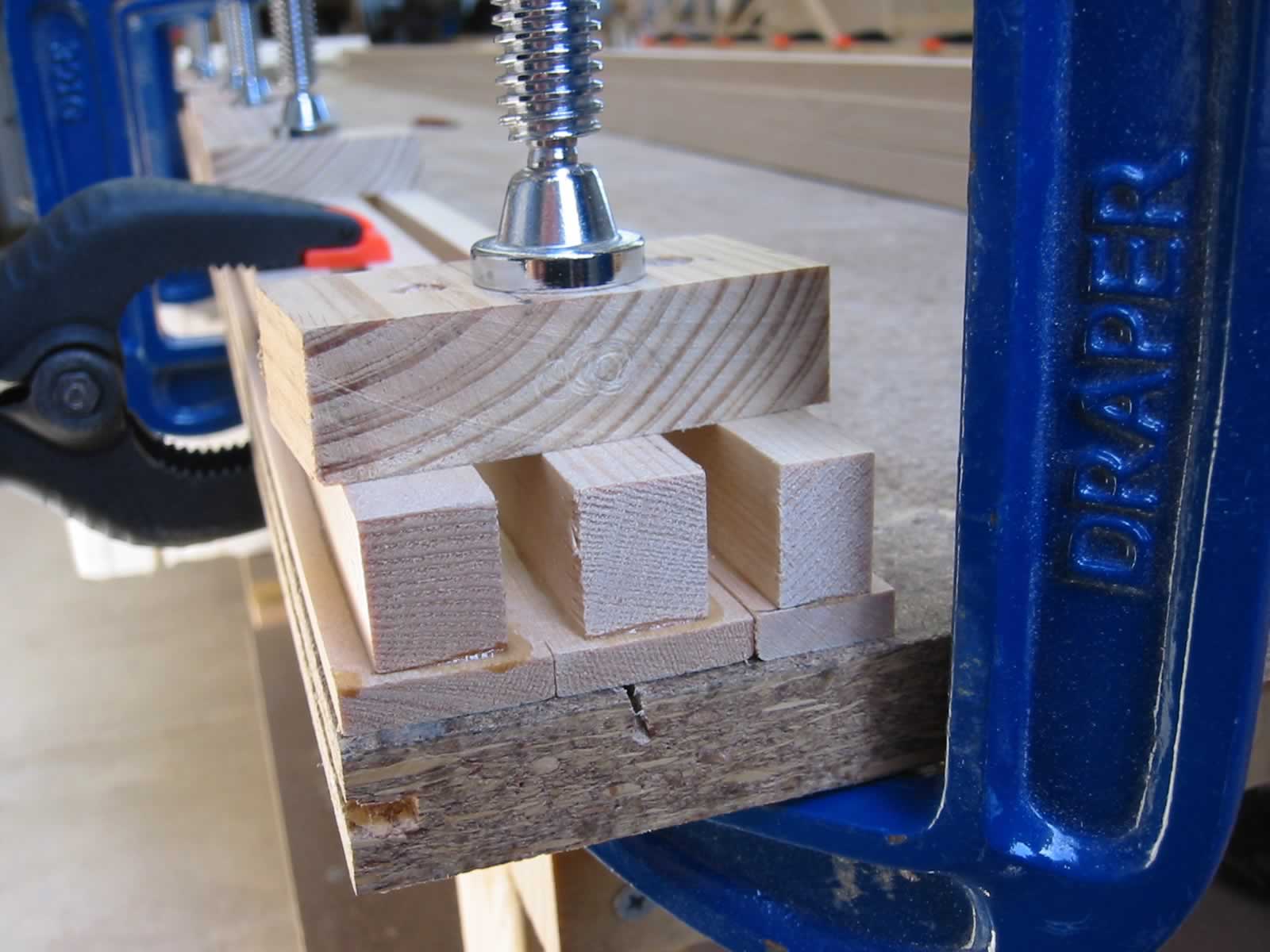

IMG_0278_JPGThe gussets were glued on one side and then, after the glue had hardened the stabilizer turned over and gussets glued to the second side. When that was dry I glued the “Ribs” to both sides making a symmetrical airfoil shape

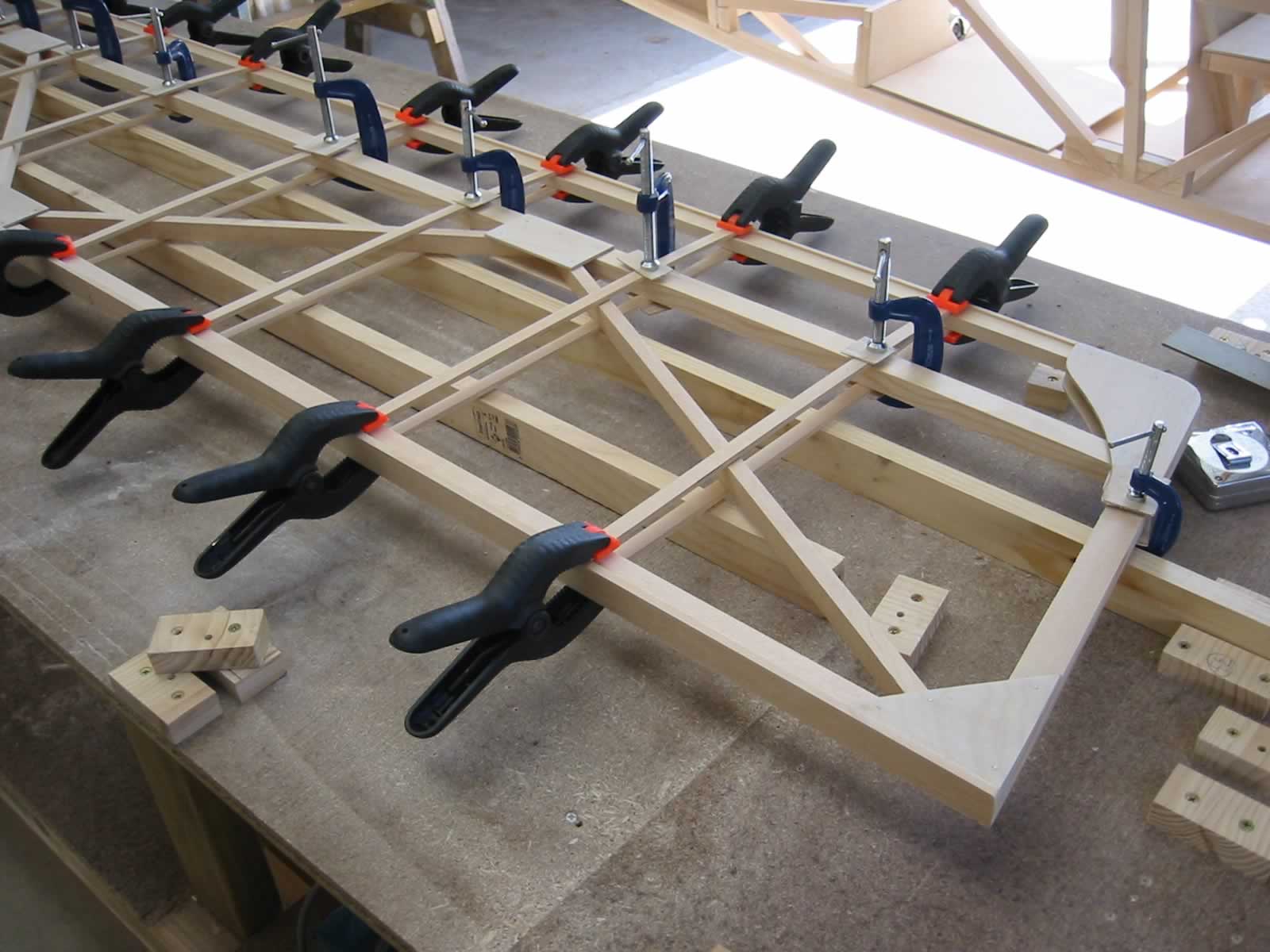

IMG_0274_JPGSanding the leading edge to shape will be completed later.

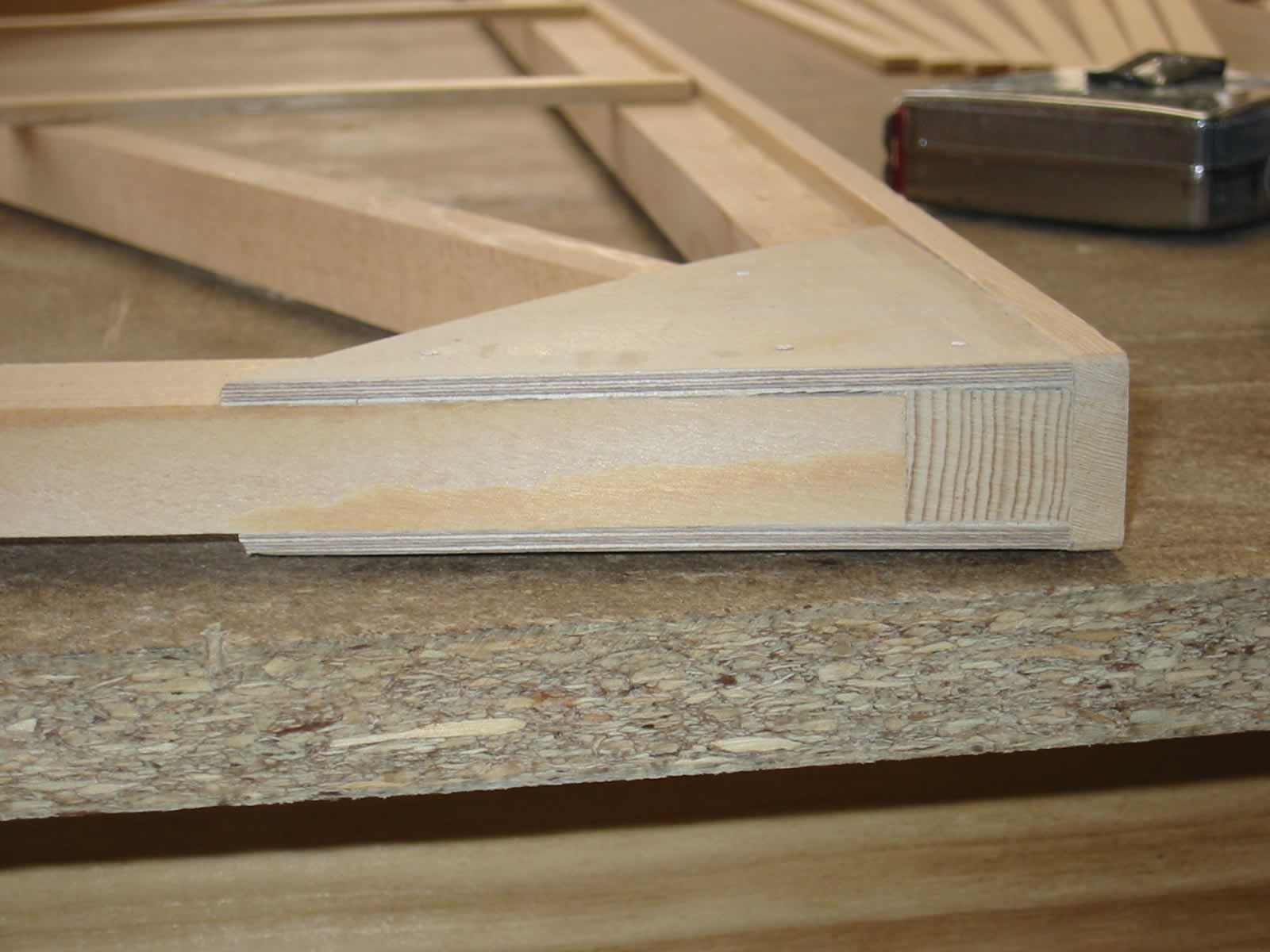

IMG_0262_JPGEdge of Stabilizer showing taper to the leading edge

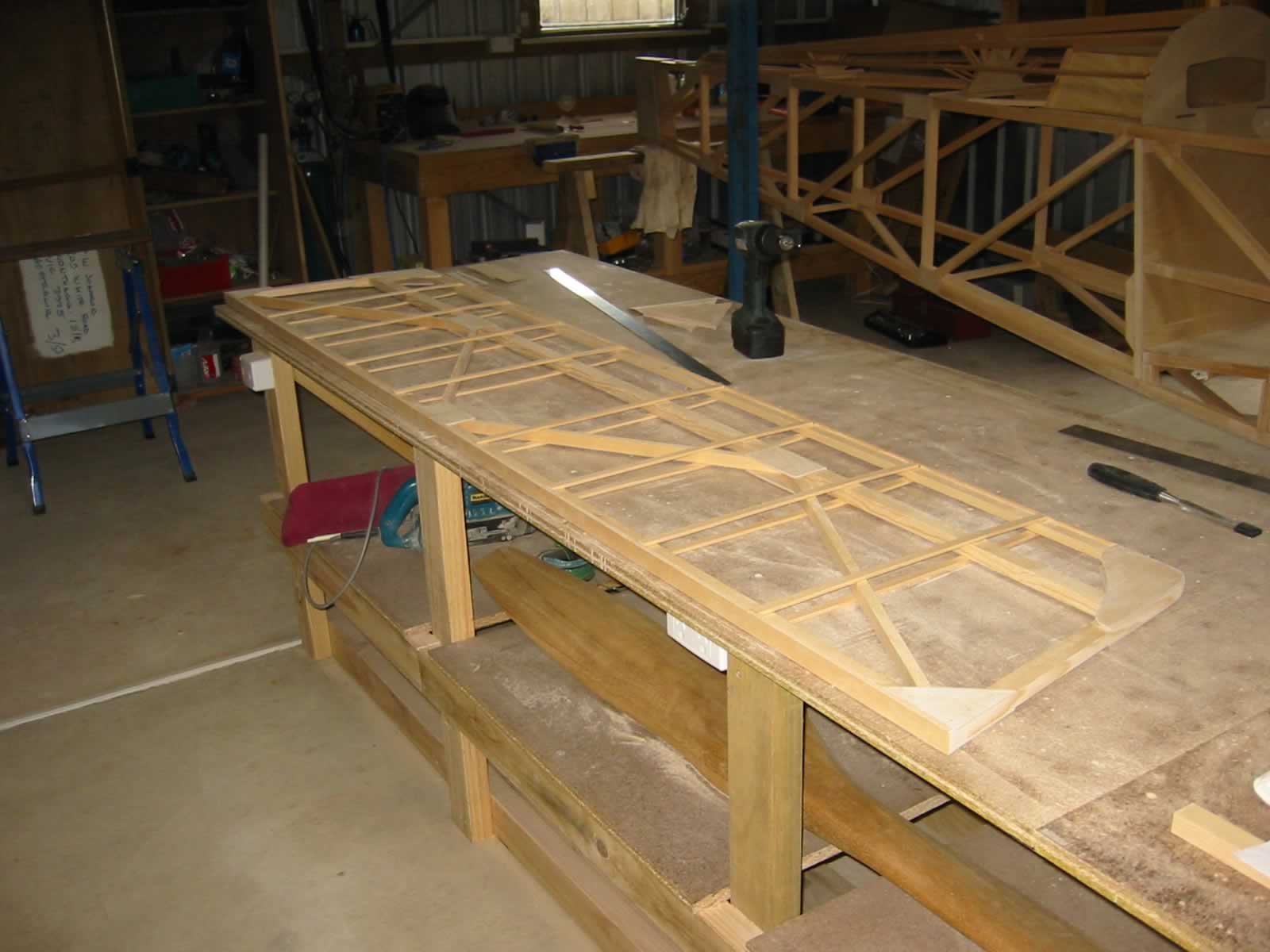

IMG_0283_JPGCompleted Stabilizer

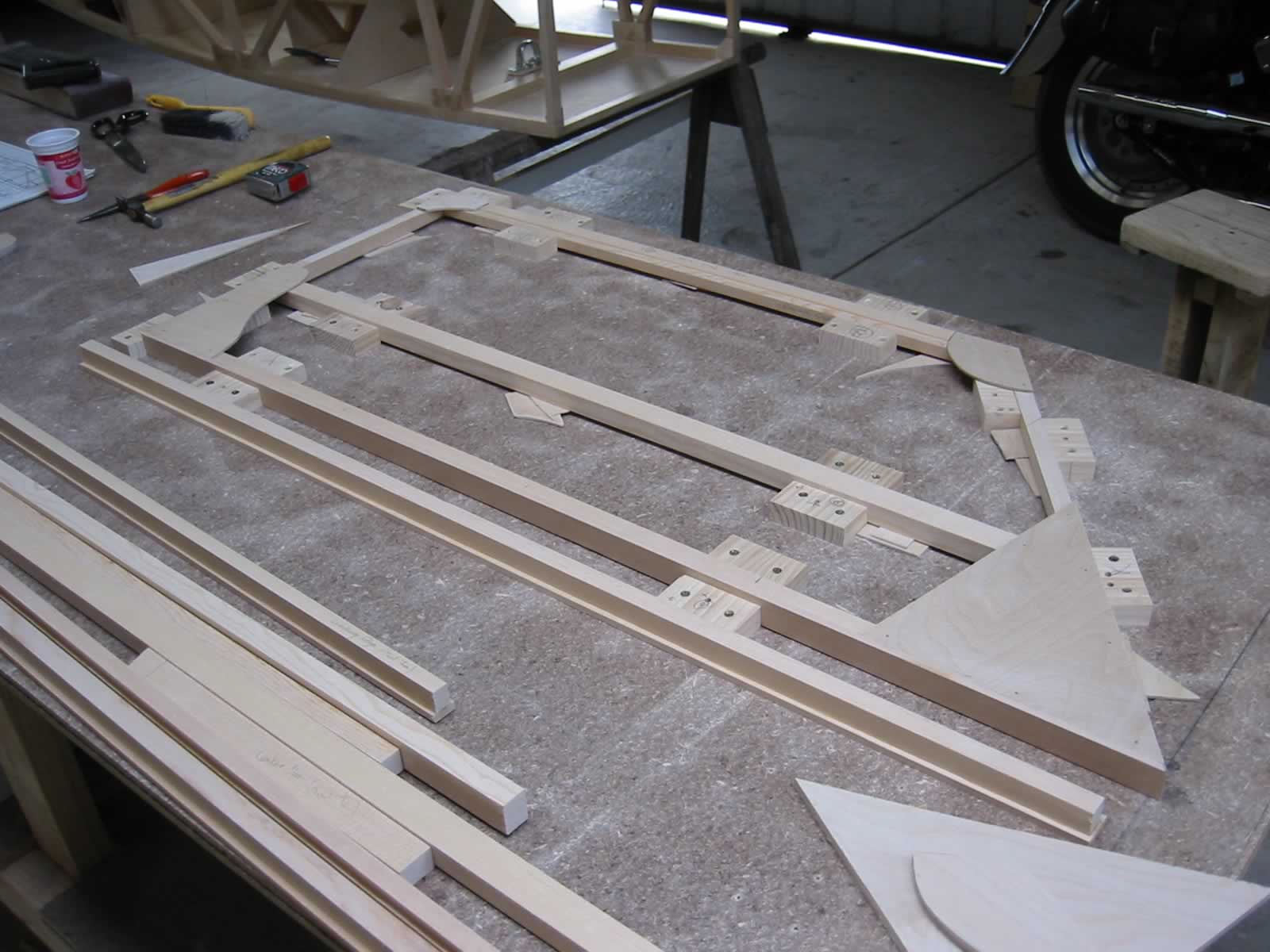

IMG_0282_JPGThe elevators were made up in exactly the same fashion

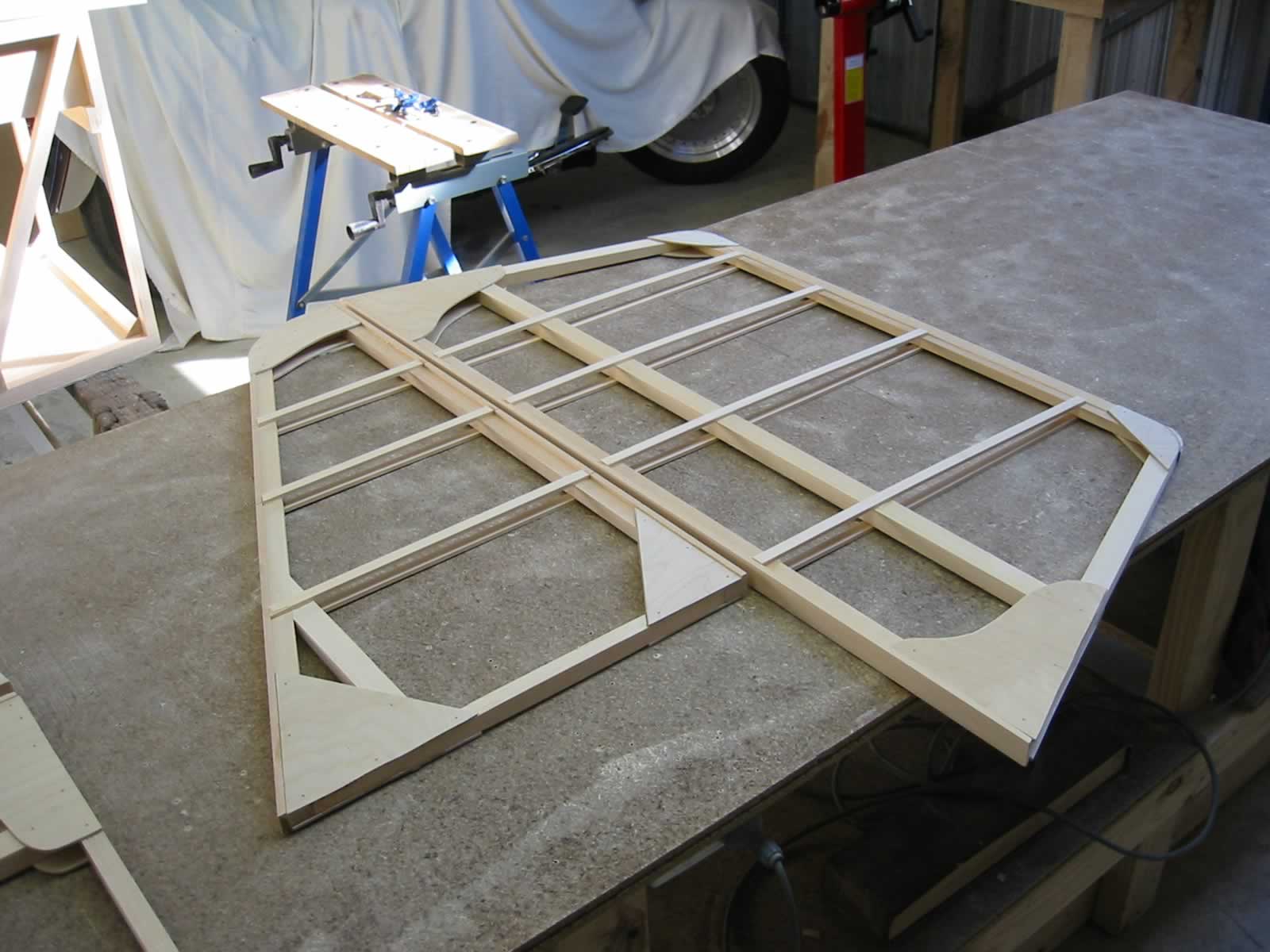

IMG_0293_JPGThe completed rudder and fin

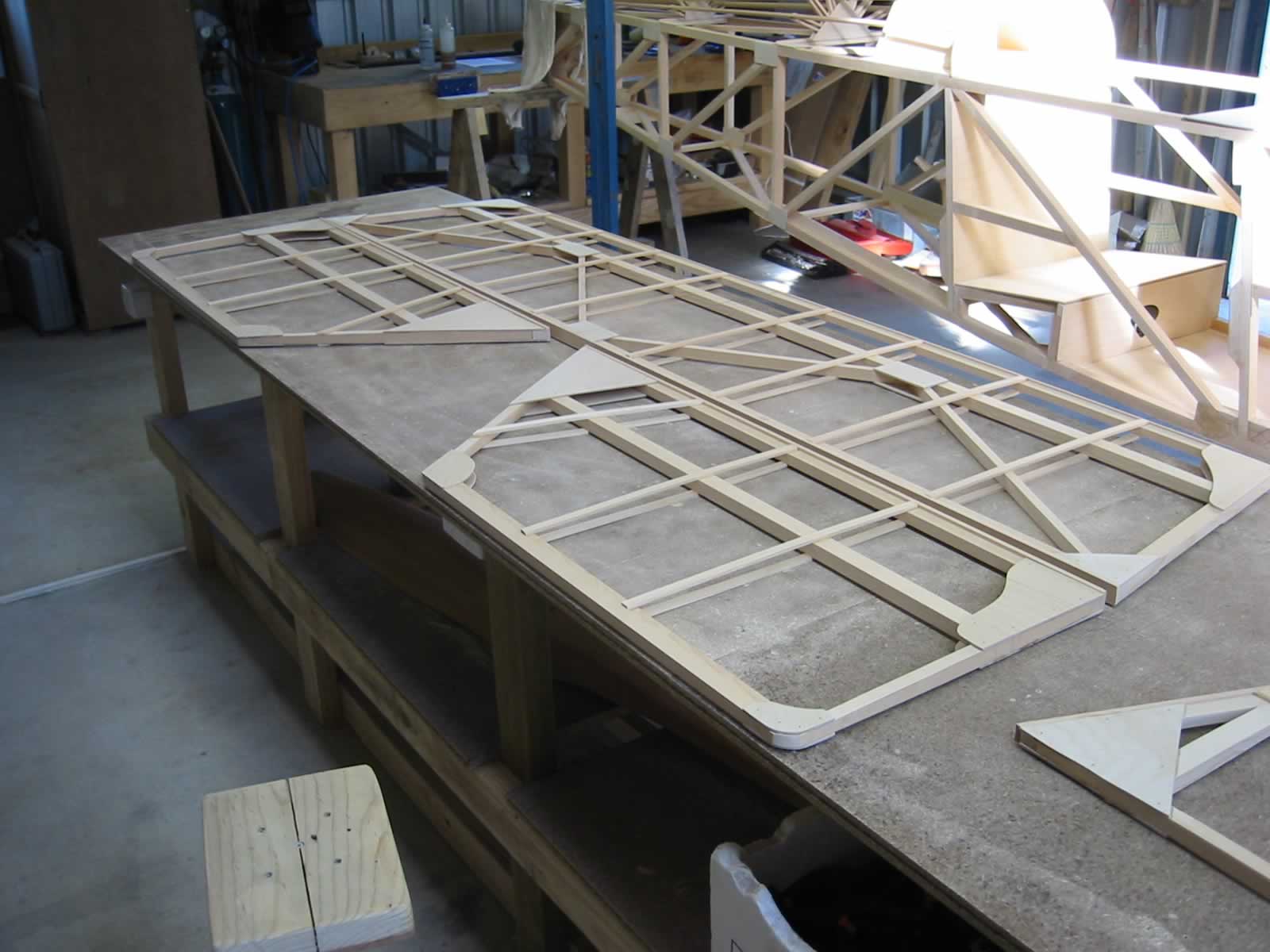

IMG_0294_JPGand stabilizer and elevators

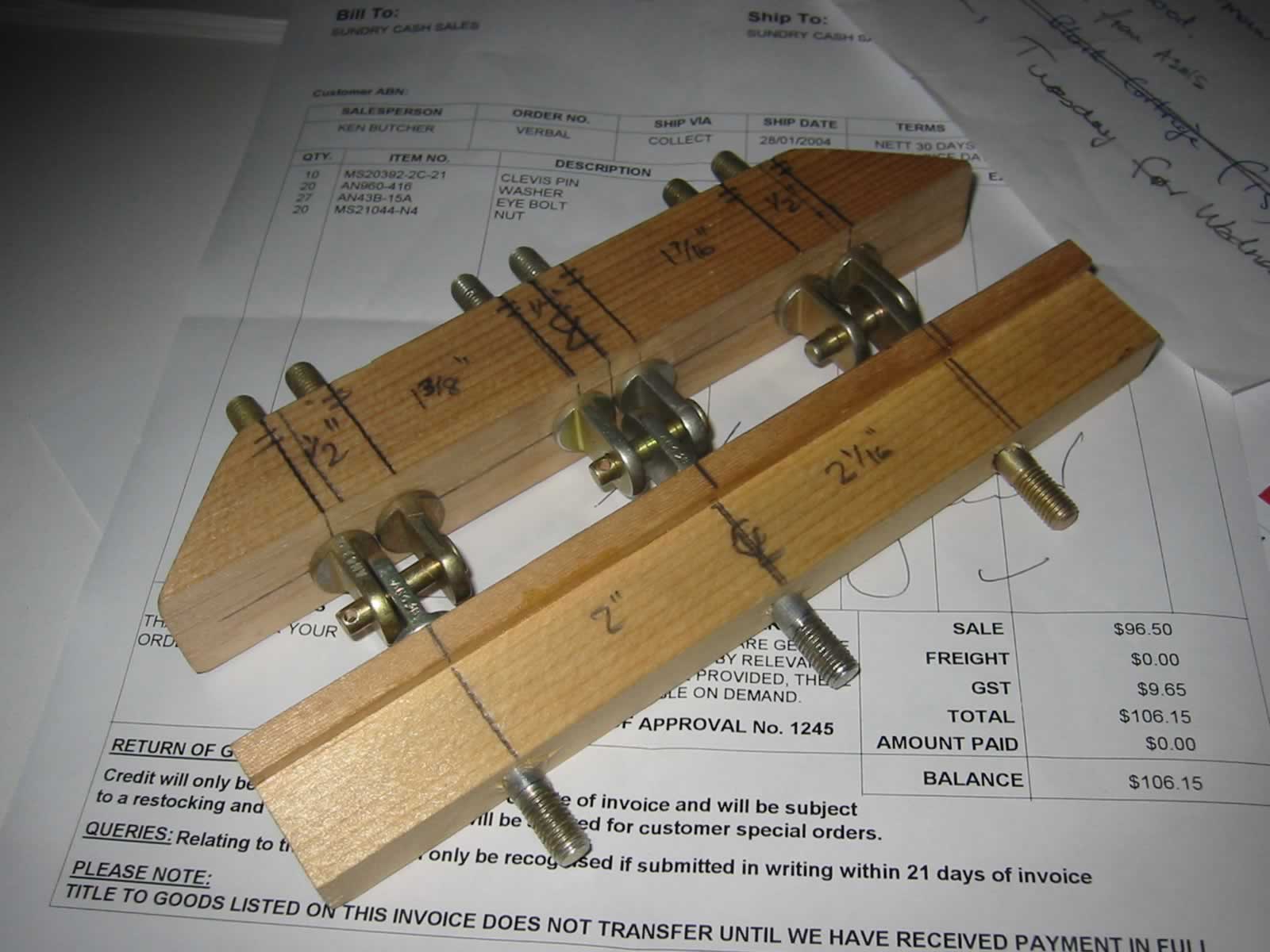

IMG_0449_JPGWorking out the hinges using eye bolts

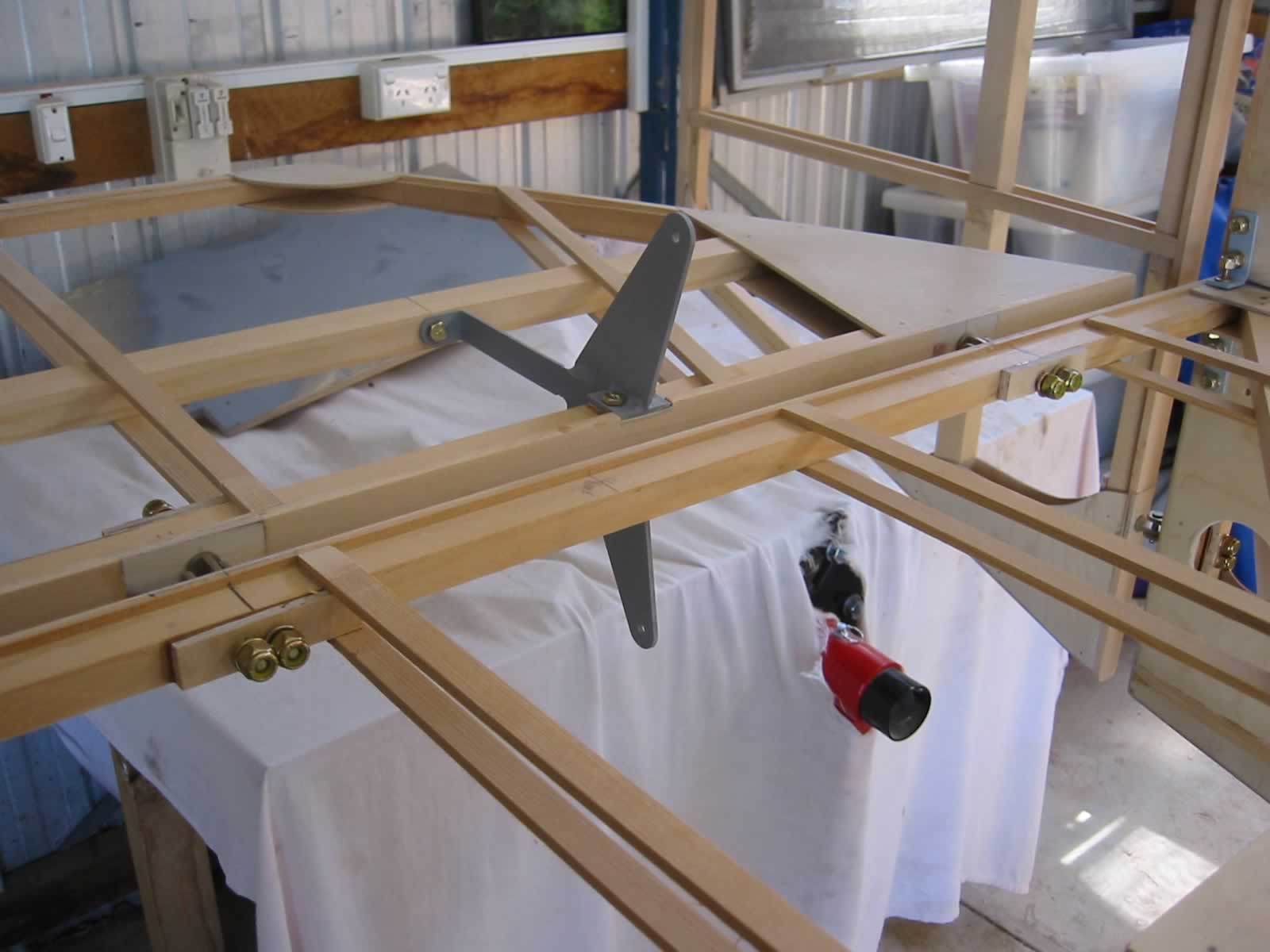

IMG_0482_JPGThe hinges and control horns fitted

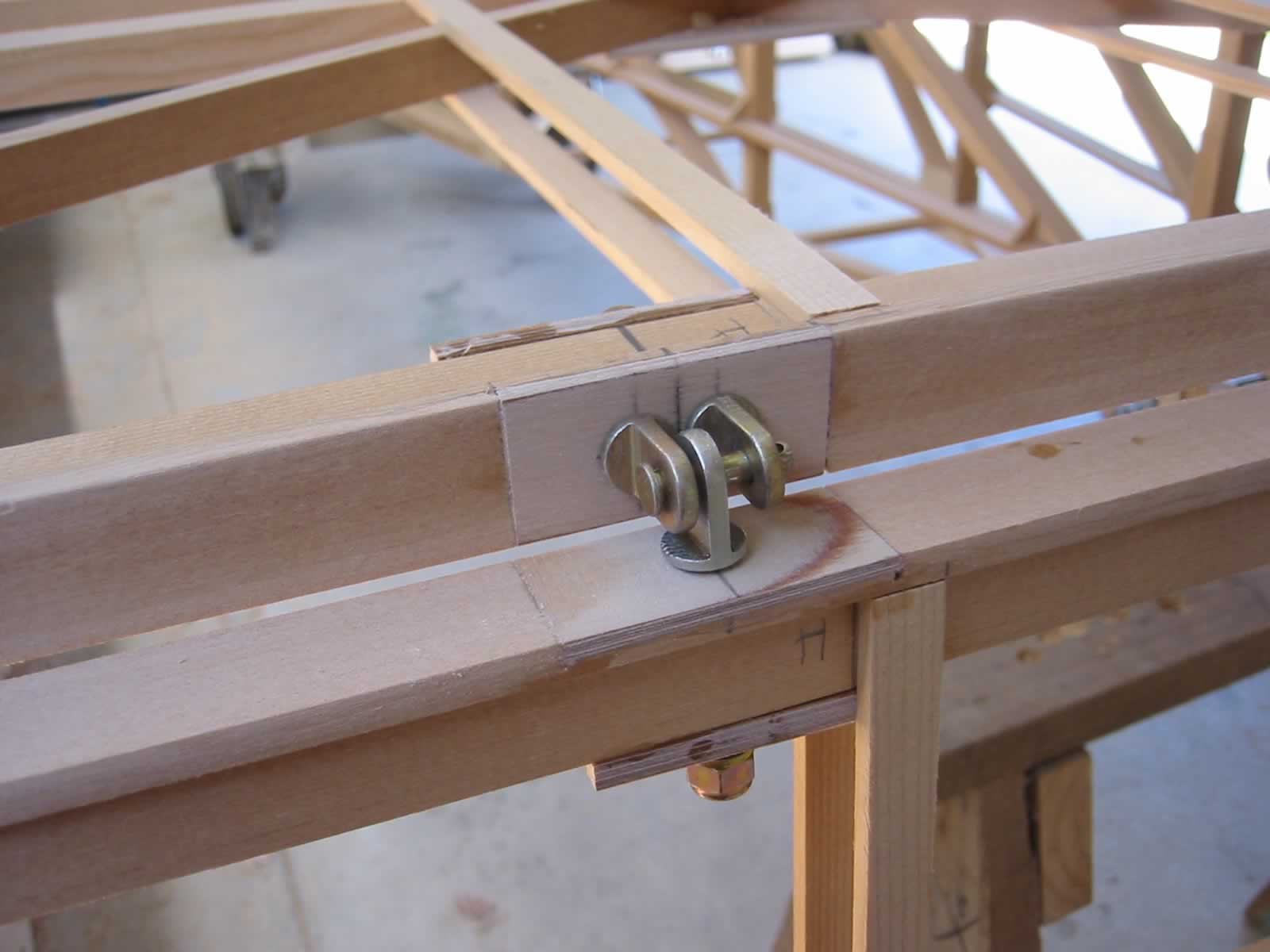

IMG_0478_JPGDetail of one elevator hinge

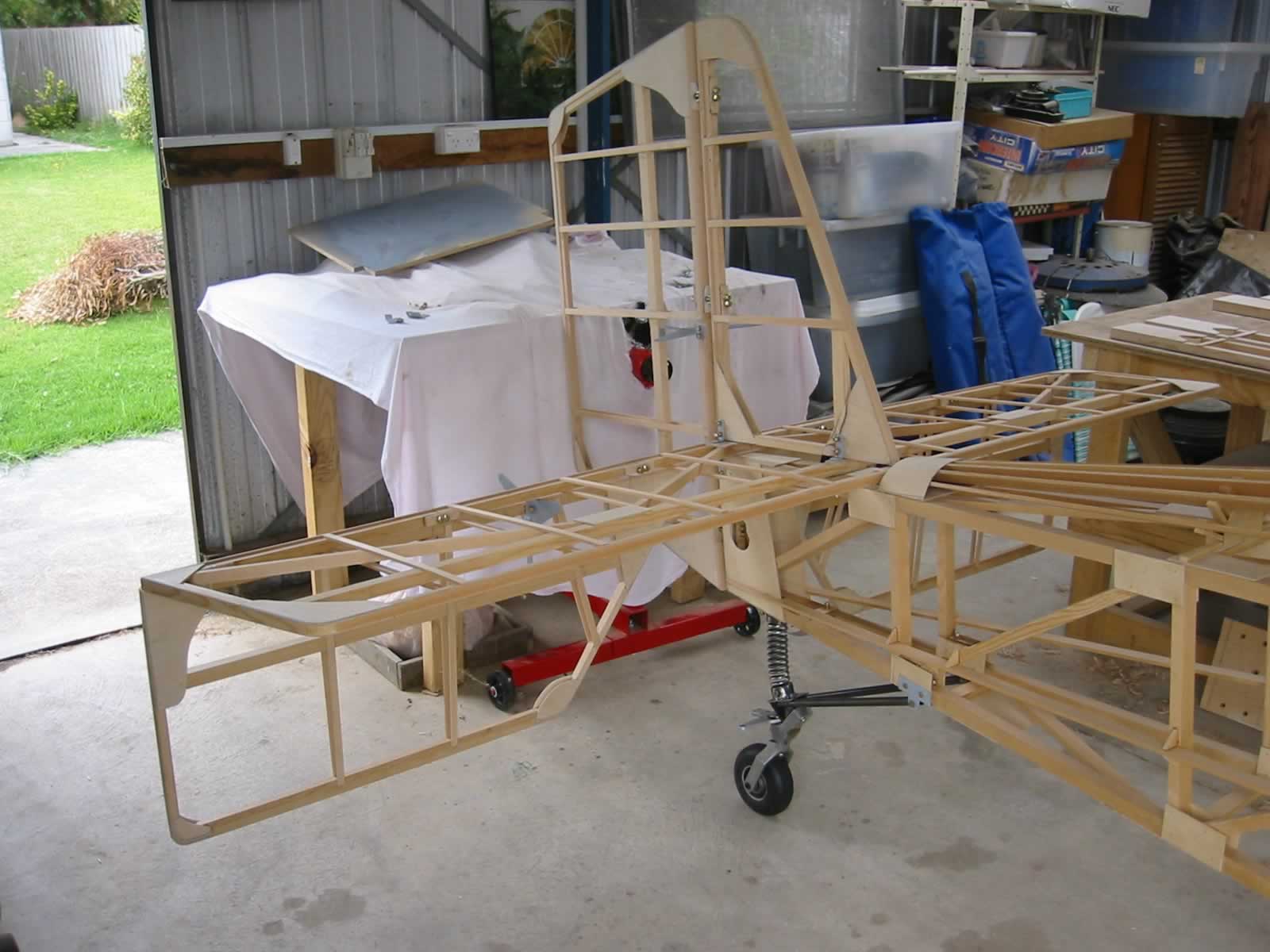

IMG_0487_JPGThe completed tail feathers and tail wheel in place on the fuselage
