Fuel Systems

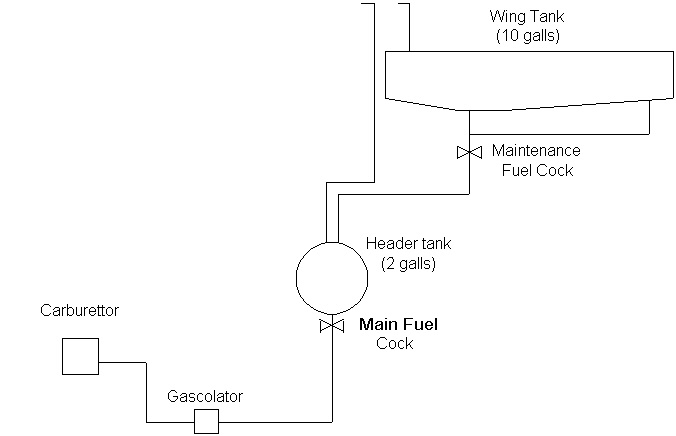

I have decided to use a wing tank as the main fuel supply and to use a small header tank in the front of the fuselage to provide the gravity feed to the carburetor.

fuel systemIMG_0985_JPGThe header tank in place.

IMG_0987_JPGMain tank in place.

IMG_0998_JPGMaintenance Fuel Tap

IMG_0995_JPGFuel fittings on header tank.IMG_0999_JPG Outlet pipes from main tank.IMG_1000_JPGMain fuel tap.
